NANO-QM871-I1-I7

    R 24,690.50 R 24,690.50 24690.5 ZAR

    R 21,470.00

    This combination does not exist.

    Add to Cart

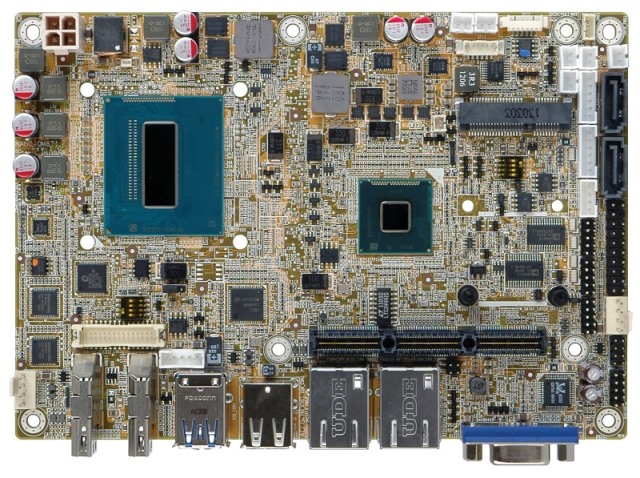

    EPIC SBC I7-4700E

    Terms and Conditions
    Shipping: 2 - 5 days (Includes processing)
    Assembly (if applicable): Additional 2 - 4 days

    Product Datasheet

    Specification

    1 Intel i7-4700EQ on-board 4th generation 2.4 GHz, quad-core, 6MB cache, TDP=47W
    2 RAM SODDR3L x1 slot supports up to 8GB
    3 5x USB2 , 2x USB3
    4 Full-size miniPCIe slot, 1x PCIe/14 Type 2 slot (optional)
    5 12V DC power input
    6 KB/MS, 2x USB2, RS-422/485, 2x RS232, 2x SATA, iRIS-11, TPM, SMBus
    7 Operating Temperature: -1°C ~ 6°C
    8 EPIC form factor 115mm x 165mm

    Intel i7-4700EQ on-board 4th generation 2.4 GHz, quad-core, 6MB cache, TDP=47W RAM SODDR3L x1 slot supports up to 8GB 5x USB2 , 2x USB3 Full-size miniPCIe slot, 1x PCIe/104 Type 2 slot (optional) KB/MS, 2x USB2, RS-422/485, 2x RS232, 2x SATA, iRIS-1010, TPM, SMBus Operating Temperature: -10°C ~ 60°C EPIC form factor 115mm x 165mm

    Suggested Accessories:

    RAM-2GB-SODDR3L
    RAM-2GB-SODDR3L
