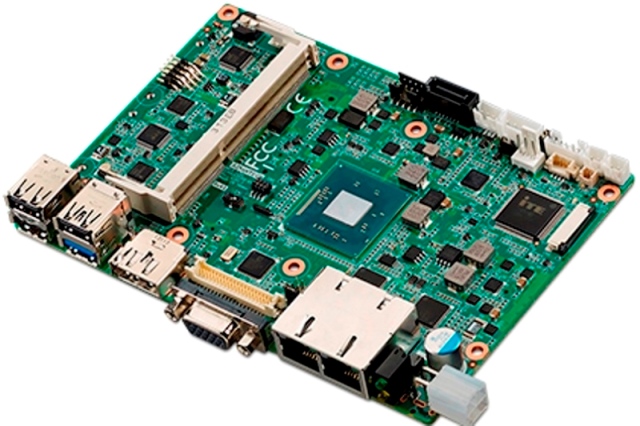

MIO-5251E-S3

    R 8,004.00 R 8,004.00 8004.0 ZAR

    R 6,960.00

    This combination does not exist.

    Add to Cart

    3.5 SBC E3825 VGA/HDMI

    Terms and Conditions
    Shipping: 2 - 5 days (Includes processing)
    Assembly (if applicable): Additional 2 - 4 days

    Product Datasheet

    Specification

    1 Intel Atom E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
    2 RAM SODDR3L x1 slot supports up to 8GB
    3 2x LAN GBE, 2x RS232, 2x RS232/422/485, 1x USB2
    4 1x miniPCIe withSIM, MIOe SMBus, 3x USB2., LPC, 1x PCIe x1, line out, Displaypo
    5 12V DC power input
    6 I2C 1 (Shared with SMBus pin), SMBus, GPIO
    7 Operating Temperature: °C ~ 6°C
    8 3.5” Form Factor 148mm x 12mm

    Intel Atom E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W) RAM SODDR3L x1 slot supports up to 8GB 2x LAN GBE, 2x RS232, 2x RS232/422/485, 1x USB2 1x miniPCIe withSIM, MIOe SMBus, 3x USB2.0, LPC, 1x PCIe x1, line out, Displaypo I2C 1 (Shared with SMBus pin), SMBus, GPIO Operating Temperature: 0°C ~ 60°C 3.5” Form Factor 148mm x 102mm
