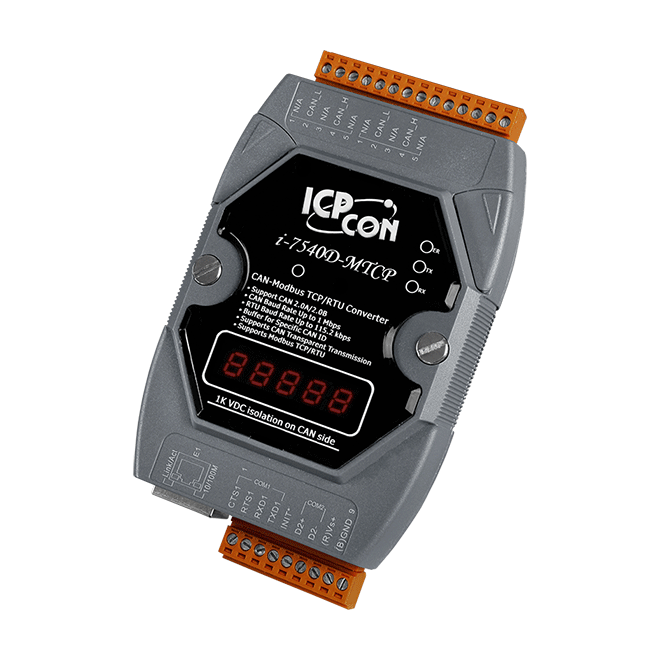

I-7540D-MTCP-G

https://www.cme.co.za/web/image/product.template/15453/image_1920?unique=e84765a

CONVERTER CAN TO ETHERNET MODBUS TCP MODBUS RTU

6,175.00 6175.0 ZAR 6,175.00 Excl. VAT

6,175.00 Excl. VAT

7,101.25 7101.25 ZAR 7,101.25 Incl. VAT

Not Available For Sale

    This combination does not exist.

    Terms and Conditions
    Shipping: 2 - 5 days (Includes processing)
    Assembly (if applicable): Additional 2 - 4 days

    Product Datasheet

    • 80186-80 Embedded CPU, or compatible
    • Ethernet Protocols, TCP,UDP,IP,ICMP,ARP
    • COM driver support interrupt & 1K QUEUE Input & Output buffer
    • Provide 200 CAN frames buffer in CAN to Modbus Mode
    • NXP 82C 250 CAN Transceiver
    • Support both CAN specification 2.0A and 2.0B
    • Max transmission speed up to 1M bps for CAN and 115.2kbps for RS-232 & RS-485
    • Max transmission distance of CAN over 1000m (follow CAN specification)
    • 7-segment LED display to Module IP, RS-232 baud rate, CAN configuration…
    • Software configurable CAN and RS-232 communication parameters
    • Firmware updated from COM1 or Ethernet port
    • Support Web Configuration
    • Support maximum 24 Ethernet clients connection
    • Support function code 0x03/0x04/0x10 of Modbus TCP/RTU command for reading and writing CAN message
    • Provide the transparent communication between the CAN devices via Ethernet
    • Support 30 specific CAN IDs in the Modbus TCP/RTU mode

    Suggested Accessories:

    PSU-MDR-40-24
