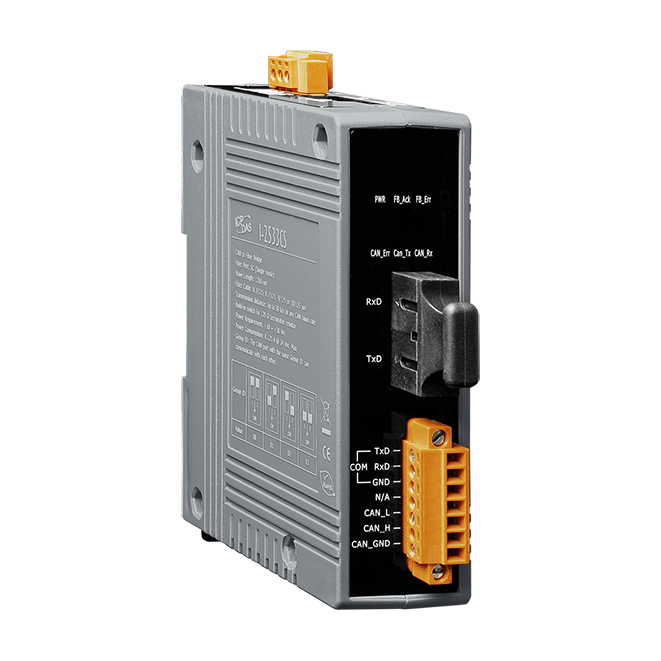

I-2533CS-A CR ICP DAS CAN to Single-mode Fiber Bridge (30 km)
I-2533 CS
CAN to Single-mode Fiber Bridge; 1 (30 km) single-mode, SC connector
Product Datasheet
- Fiber Type: SC ; Single mode ; 100 Base-FX
- Maximum transmission distance up to 30 km at any CAN baud rate
- NXP TJA1042 CAN transceiver
- 2500 Vrms isolation on the CAN side
- Supports both CAN 2.0A and CAN 2.0B
- Fully compatible with the ISO 11898-2 standard
- Rotary switch for CAN baud rate configuration
- Build-in switch for 120 Ω terminal resistor
- Removable terminal block, Mount easily on DIN-Rail
- Allows user-defined CAN baud rate
- Fiber broken line detection
- Utility tool for CAN message filter configuration
- The CAN port with the same Group ID can communicate with each other
