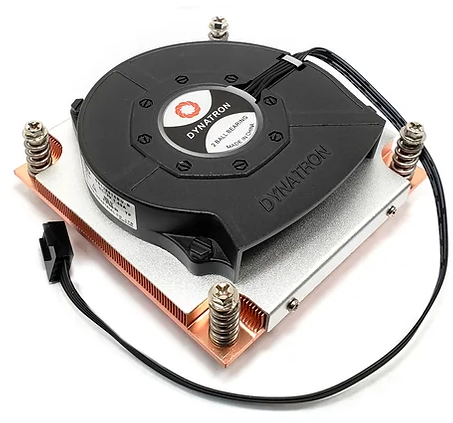

FAN-Q3
LGA 1700 up to 125 Watts 1U & Server Solution
CPU Support | Intel |
CPU Socket | LGA 1700 |
Solution | 1U Server |
Dimensions | 92.0 x 90.0 x 28 mm |
Weight | 444 ± 5 g |
Material | Copper Heatsink with Skiving Fins |
Fan Dimension | Ø80.0 x 15.0 mm |
Speed | At Duty Cycle 0~20%: 1000±200 RPM At Duty Cycle 50%: 3500±10% RPM At Duty Cycle 100%: 7000 RPM |
Bearing | Double Ball |
Rated Voltage | 12V |
Power | At Duty Cycle 0~20%: 0.60 W At Duty Cycle 50%: 3.84 W At Duty Cycle 100%: 19.2 W |
Air Flow | At Duty Cycle 0~20%: 6.5 CFM At Duty Cycle 50%: 11.2 CFM At Duty Cycle 100%: 22.28 CFM |
Noise Level | At Duty Cycle 0~20%: 21.5 dBA At Duty Cycle 50%: 43.0 dBA At Duty Cycle 100%: 59.14 dBA |
Static Pressure | At Duty Cycle 0~20%: 2.27 mm-H2O At Duty Cycle 50%: 18.56 mm-H2O At Duty Cycle 100%: 74.18 mm-H2O |
Lead Wire Pin Out | Pin1-Black (-) |
