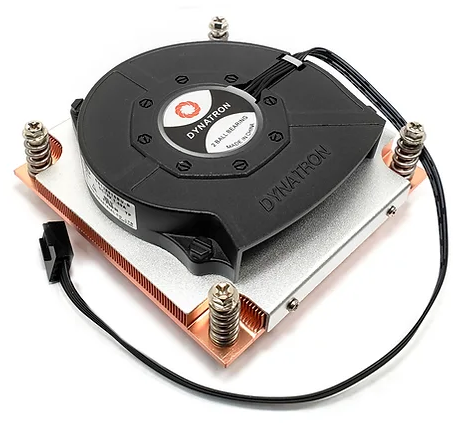

FAN-Q3

https://www.cme.co.za/web/image/product.template/15259/image_1920?unique=bb373cf

LGA 1700 up to 125 Watts 1U & Server Solution

1,325.00 1325.0 ZAR 1,325.00 Excl. VAT

1,325.00 Excl. VAT

1,523.75 1523.75 ZAR 1,523.75 Incl. VAT

Not Available For Sale

    This combination does not exist.

    Terms and Conditions
    Shipping: 2 - 5 days (Includes processing)
    Assembly (if applicable): Additional 2 - 4 days

    CPU Support

    Intel

    CPU Socket

    LGA 1700

    Solution

    1U Server

    Dimensions

    92.0 x 90.0 x 28 mm

    Weight

    444 ± 5 g

    Material

    Copper Heatsink with Skiving Fins

    Fan Dimension

    Ø80.0 x 15.0 mm

    Speed

    At Duty Cycle 0~20%: 1000±200 RPM

    At Duty Cycle 50%: 3500±10% RPM

    At Duty Cycle 100%: 7000 RPM

    Bearing

    Double Ball

    Rated Voltage

    12V

    Power

    At Duty Cycle 0~20%: 0.60 W

    At Duty Cycle 50%: 3.84 W

    At Duty Cycle 100%: 19.2 W

    Air Flow

    At Duty Cycle 0~20%: 6.5 CFM

    At Duty Cycle 50%: 11.2 CFM

    At Duty Cycle 100%: 22.28 CFM

    Noise Level

    At Duty Cycle 0~20%: 21.5 dBA

    At Duty Cycle 50%: 43.0 dBA

    At Duty Cycle 100%: 59.14 dBA

    Static Pressure

    At Duty Cycle 0~20%: 2.27 mm-H2O

    At Duty Cycle 50%: 18.56 mm-H2O

    At Duty Cycle 100%: 74.18 mm-H2O

    Lead Wire Pin Out

    Pin1-Black (-)
    Pin2-Yellow (+)
    Pin3-Green (Techometer/Signal output)
    Pin4-Blue (PWM)
