The DRPC-242-ADL-P is an integrated DIN rail box PC. It boasts a modular design with PCIe expansion, giving users the flexibility to customize the configuration according to their specific needs. With its impressive computing power, powered by the 12th generation Intel® Core™ Processors, and versatile I/O connectivity, the DIN Rail Box PC efficiently handles advanced Industrial Internet of Things (IIoT) applications, including AMR controllers, EV charging station controls, AI inference computing, robotics control, and cabinet control.
- 12th Intel Core Processor
- 20°C to 60°C Wide Operating Temperature
- 1 x PCIe x4 Expansion Module
- Fanless Design
- 1 x SIM Socket, Wi-Fi 6E, Bluetooth 5.2
- Dual Storage
- 4K Dual Display
- 2.5kV Isolated COM Ports

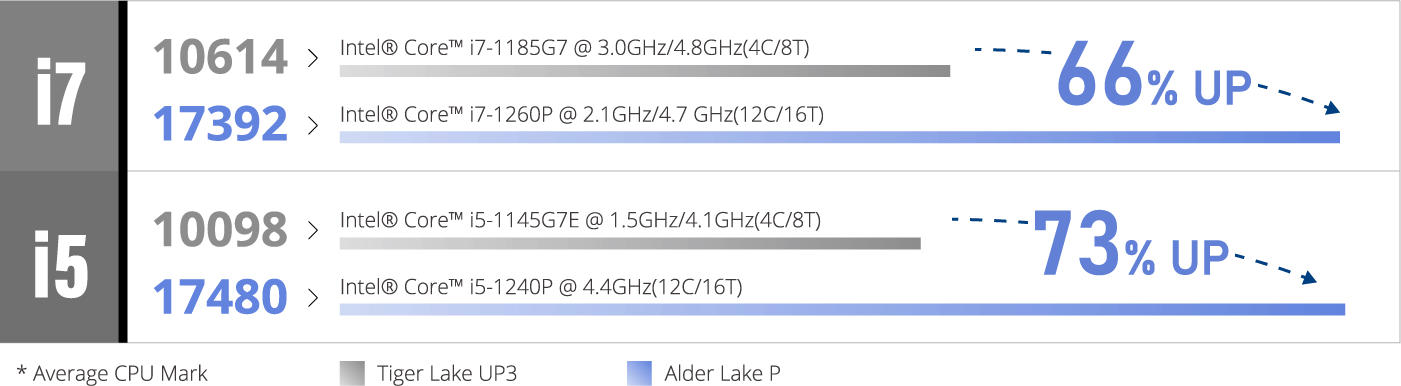

Optimizing AI Inference with 12th Gen Intel® Core™ Mobile Processors
IEI DRPC-242-ADL-P is ideal for multitasking industrial workloads, with its up to 12 cores and 16 threads, as well as up to 96 graphics execution units in the SoC design. This powerful combination allows it to handle high-performing AI for inferencing and machine vision tasks effectively.
Moreover, the DRPC-242-ADL-P supports built-in AI acceleration from Intel® Deep Learning Boost (Intel® DL Boost) and the Intel ® Distribution of OpenVINO™ toolkit, further enhancing its capabilities for AI-related tasks.
Variety of CPU options available
View now on our website:
DRPC-242-ADL-P-CSS
12th Gen Intel® Celeron® 7305
DRPC-242-ADL-P-I3CS
13th Gen Intel® Core™ i3-1320PE
DRPC-242-ADL-P-I5CS
12th Gen Intel® Core™ i5-1240P
DRPC-242-ADL-P-I7CS
12th Gen Intel® Core™ i7-1260P

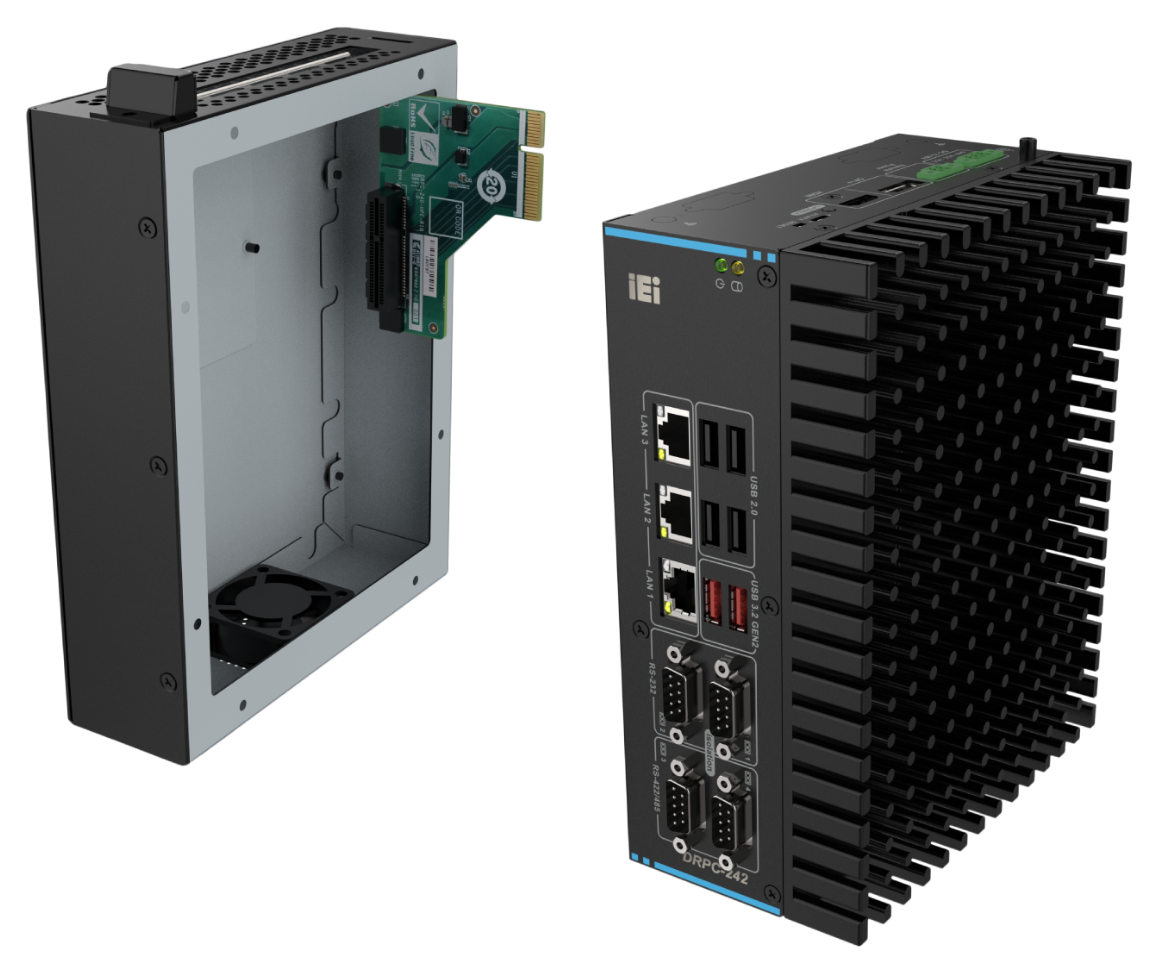

Stackable, Modular PCIe x4 Design for Added Functionality
By adding an optional second stack expansion kit, TXC-DRPC-242-1S, the DRPC-242-ADL-P becomes highly flexible, allowing the installation of various PCIe x4 add-on cards. These cards include high-density I/O cards, vision cards, motion cards, and AI accelerators, catering to specific application requirements. The connections are made through simple and reliable board-to-board connections, ensuring ease of use and reliability.
Wireless Connectivity for Edge Telemetry
The DRPC-242-ADL-P enables seamless wireless connectivity and AI accelerating for remote and mobile edge deployments.5G/4G cellular communication by M.2 3042/3052 B key slot with SIM socket on board (PCIe Gen3 x1/UsB 3.2 Gen2/USB 2.0 mode). Wi-Fi & Bluetooth by M.2 2230 A key slot (PCIe Gen3 x1/USB 2.0 mode)
Fanless System with Reliable Thermal Design
DRPC-242-ADL-P boasts an optimized thermal design featuring a cutting-edge pin-fin heatsink concept. This innovative design significantly improves two-dimensional heat conduction while reducing flow impedance, resulting in superior heat dissipation within this fan-less system.
As a result of this enhanced thermal efficiency, the overall weight of the DRPC-242-ADL-P has been reduced by an impressive 35%. This weight reduction not only makes the system more compact but also enhances its reliability, especially in applications sensitive to vibrations, such as AGV (Automated Guided Vehicle) setups.
The implementation of the pin-fin heatsink concept allows the DRPC-242-ADL-P to outperform systems that use traditional plate heatsinks with parallel fins. This results in maximized performance and superior heat management for the DRPC-242-ADL-P, making it an ideal choice for demanding industrial applications.

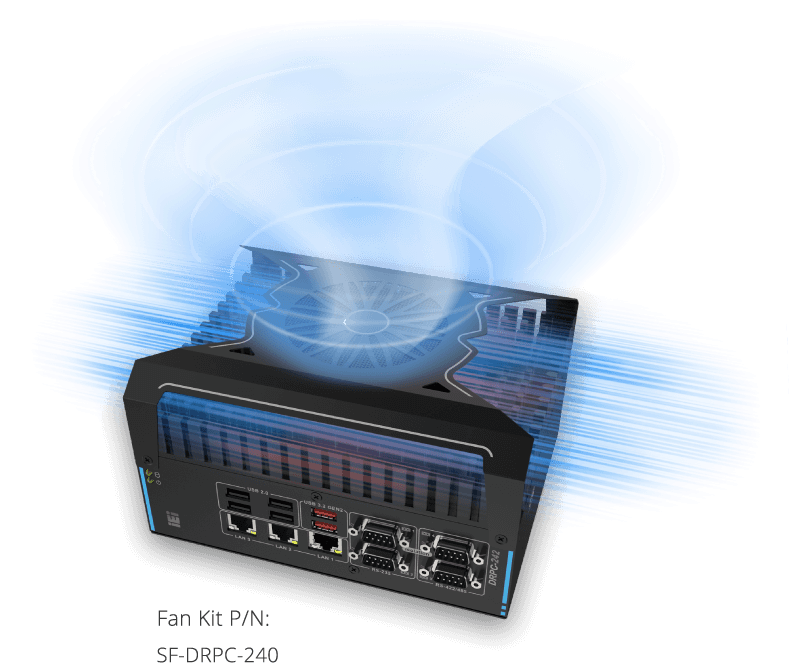

Advanced High-efficiency Fan Kit Releases Extreme Computing Power
For computing-intensive applications, users could opt to add an external fan for an active cooling solution maintaining high system performance in high temperature environment. This design also brings high reliability by preventing dust or particles from getting into the hardware, and it is easy to disassemble and clean.
» TDP 15W -20°C ~ 60°C w/o external fan
» TDP 28W -20°C ~ 60°C with external fan
Dual 4K Displays with Immersive Graphics and Media Performance
The DRPC-242-ADL-P is equipped with one HDMI 1.4 port and one DP++ port, both support pixel-accurate 4K resolutions and empower manufacturers to access clearer analysis and management via panel displays or interactive displays. The DP++ connector allows the use of a simple, inexpensive passive adapter to convert to HDMI. It is completely plug and play, handles both video and audio, and does not need any driver to work.

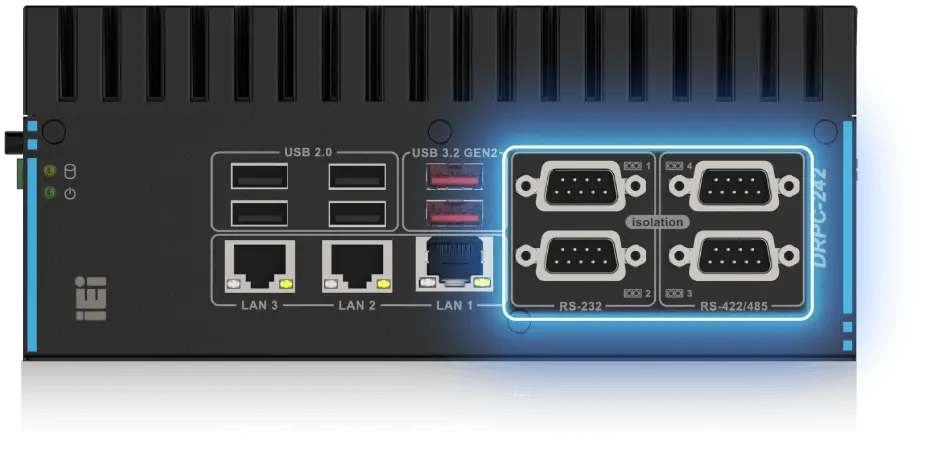

2.5kV Isolated COM Ports Ensure Reliable Connectivity
The four serial ports are protected against 2.5kV isolation to prevent accidental high voltage shorts, lightning surges and ground loops, so that the DRPC-242-ADL-P will not be damaged while connected.
